Studding Outlet Flanges are specialized components used to connect pipes in various industrial applications. They offer unique advantages and are available in different types, sizes, and materials. Let’s explore what they are and their key characteristics.

Studding Outlet Flanges

                                                                             Image source: Texas Flange

Understanding Studding Outlet Flanges

Studding Outlet Flanges, also known as “pad flanges,” are fittings that facilitate connections between pipes and tanks or other pipes. They are designed to be installed both on the inside and outside of vessels, tanks, and pipes. Think of them as puzzle pieces that ensure a snug and secure fit, allowing for the efficient flow of liquids and gases.

Types of Studding Outlet Flanges

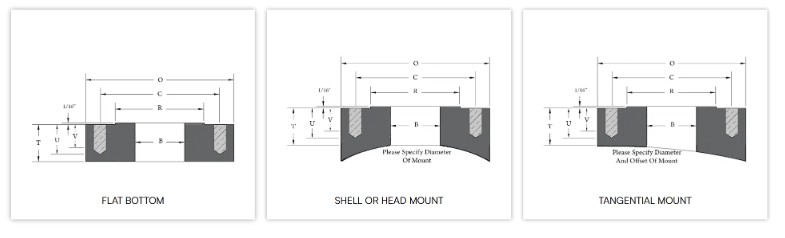

Studding Outlet Flanges come in several distinct types, each tailored for specific purposes-

Flat Bottom Type: The most commonly used type, featuring a flat bottom suitable for a wide range of applications.

Shell Mount Type: Designed for external use, these flanges provide a secure connection on the outside of vessels or pipes.

Head Mount Type: Tailored for attachment to the top of vessels or tanks, these flanges offer efficient connections.

Alternate Radius Type: These flanges feature a different curvature, ideal for projects requiring a non-standard fit.

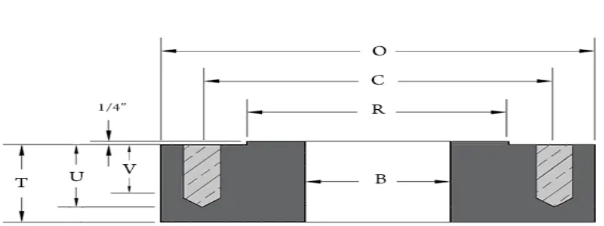

types of studding outlet flanges

Image source:Texas Flange

Size and Pressure Range

Studding Outlet Flanges are available in various sizes, spanning from smaller sizes like 1/2 inch to larger ones like 24 inches. This extensive range ensures suitability for both small-scale and large-scale applications. Additionally, they are offered in various pressure ratings, such as 150# to 2500#, to match specific pressure requirements.

Materials Used

Studding Outlet Flanges can be manufactured using a diverse range of materials, including:

  • Carbon Steel
  • Chrome Alloys
  • Stainless Steel
  • Aluminum
  • Hastalloy
  • Inconel
  • Incolloy
  • Monel
  • Copper
  • Duplex
  • Titanium

The choice of material depends on project specifications, such as corrosion resistance, temperature tolerance, and pressure handling capabilities.

Applications of Studding Outlet Flanges

Studding Outlet Flanges find applications in various industries and scenarios, including:

  • Petrochemical Industry: They are used to connect pipes in refineries and chemical plants, ensuring the safe transfer of chemicals and petroleum products.
  • Water Treatment Facilities: Studding Outlet Flanges play a role in water treatment plants, connecting pipes for the purification and distribution of clean water.
  • Oil and Gas Sector: In the oil and gas industry, these flanges are essential for connecting pipelines that transport crude oil and natural gas.
  • Manufacturing and Fabrication: Studding Outlet Flanges are used in manufacturing processes, where they connect pipes in machinery and equipment.
  • Construction: They find applications in construction projects, helping secure pipes in buildings, bridges, and infrastructure.

FAQs (Frequently Asked Questions)

Here are some common questions people often have about Studding Outlet Flanges:

1. What is the primary purpose of Studding Outlet Flanges?

Studding Outlet Flanges facilitate secure pipe connections in various applications.

2. How do Studding Outlet Flanges save space?

Their compact design allows them to fit into tight spaces, optimizing available room.

3. Are Studding Outlet Flanges expensive?

No, they offer cost-effective solutions for efficient pipe connections.

4. Can Studding Outlet Flanges be customized for specific projects?

Yes, they can be tailored to meet the unique requirements of your project.

5. Do Studding Outlet Flanges come in different sizes?

Yes, they are available in a range of sizes to accommodate various applications.

6. What materials are Studding Outlet Flanges made from?

They can be crafted from a variety of materials, chosen based on project demands.

7. Can Studding Outlet Flanges handle high-pressure situations?

Yes, they are engineered to withstand high pressure and elevated temperatures.

8. Are there size and pressure options available?

Yes, they come in different sizes and pressure ratings to match specific needs.

9. Where can I source Studding Outlet Flanges?

You can find them through various manufacturers and suppliers. One of the leading manufacturers is

10. Are Studding Outlet Flanges easy to install?

Yes, they are designed for ease of installation in various applications.

In conclusion

Studding Outlet Flanges are functional components that serve a specific purpose in pipe systems. They offer versatility in types, sizes, and materials, allowing for customization to meet project requirements. These flanges play a practical role in ensuring secure and efficient pipe connections across different industries. For more information regarding Studding Outlet Flanges visit Texas Flange, or
